Putting it all together

Looking for fast results? Want easier bends/overblows and better tone? Most player's needs can easily be met just by following the fundamental steps.


See also Five things you can do to make a harmonica play better.


Here's a quick reference to the process of upgrading a harmonica.

My method is broken down into two parts: Fundamental and Advanced.
____________________

Start here: Fundamental:
____________________

These are the things that are the most important to get right. I recommend you start with this. You cannot expect more advanced techniques to reach their full potential - or even have the desired effect - unless the foundation is solid.

Looking for fast results? Want easier bends/overblows and better tone? Most player's needs can easily be met just by following the fundamental steps.

1- Making the harp airtight by straightening the reed plates (The F Tool™) and flattening your comb. I can save you the work of flattening your comb by offering you my Dark combs™.

2- Precise tuning will augment your harps. They will sound better and stronger. I offer tuning tools to make the process a lot easier.

3- Consistent gapping. This is setting the resting position of each reed so that the reed responds equally to low and high breath force.
Gapping is only one part of what can improve the Dynamic Range Gapping is the last step you do, even if you do advanced work.
____________________

Advanced:
____________________

These techniques enhance the performance, volume and tone of each reed. These techniques are much more invasive than the fundamental techniques. Learning to do these techniques carries a greater risk of damaging your harp.

1- Reed work. The shape (curvature) of each reed can be greatly improved over the shape from the factory. The workers who assemble the harmonica don't usually have a lot of time to adjust the shape of the reeds. All you can expect from the factory is "good enough".
I offer a free PDF reed work reference guide.
I offer a solid brass reed shaping tool and a reed support tool/Plinker to make this easier.

2- Embossing. This brings the edges of the slot closer to the reed to bring out more volume, power and response from the reed. I offer a tool for this and instructions are available to download for free from that page.

____________________

Reed Replacement:
____________________

Reeds fail. Save money and learn to replace reeds on a harmonica just like you change strings on a guitar.

You can't become skilled at fixing harmonicas if you don't know how to change reeds. Likewise, you can't become skilled at changing reeds unless you know what it takes to make a reed play well. I can help you through the learning process. I offer a reed replacement kit and will give you all the support you need to reach success.

See also: How to replace a reed on a diatonic harmonica.

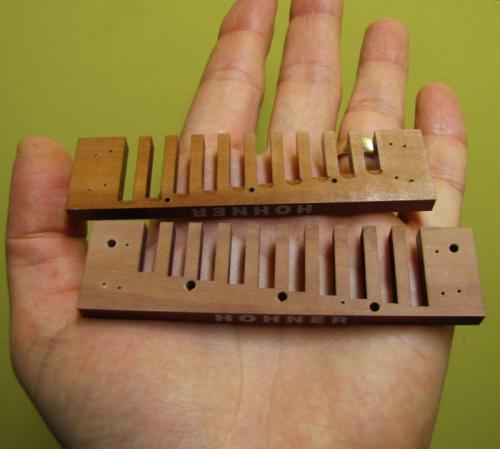

Custom Harmonica Comb - Andrew's method

I learned how to make combs from friends with over 100 cumulative years of machinist experience! This is my low-tech, high-precision method of making exquisite harmonica combs. You can use this method to flatten the stock comb on your harmonica to make it play better.

The diatonic harmonica is made of solid pieces that must fit together in a way that is airtight. Mass-produced harmonicas often are not airtight and can be improved with a few minutes work.

This process is usually a little faster but the using a camera slows things down a bit.

Use this process on Hohner Bamboo Laminate (Crossover and Thunderbird) combs or the stock Suzuki Manji comb. You can also flatten a comb made of Corian or any other solid-surface material using this method. Be careful not to drop Corian combs - they shatter.

Wooden combs will swell. To flatten wooden combs like the Seydel 1847 or Marine Band Deluxe/1896 combs, I recommend you seal the surface after you flatten. Check for flatness after you seal, too.

Do not use this method on recessed-type harmonicas like the Special 20, Session or HarpMaster harmonicas. Those harmonicas use a different design concept. Checking and adjusting flatness on those combs requires a different strategy. Straightening and flattening the reed plates will make the best of the thin plastic combs in those models and will offer you great results. For perfectly flat reed plates, use The F Tool™.

This is the comb tool™. I meticulously flatten the top edge. *Only* the top edge is flat - we will be using that edge as a reference.

My comb tool is a working copy of a high-precision straight-edge (some call this a machinist square) precise to .000025" per 6" (25 millionths of an inch). The original stays in a drawer! If I were to use it on every comb I make, it would eventually wear out.

You can get a set of my comb tools here: Comb Tool™.

We will be measuring flatness along the left-to-right axis.

We will be measuring flatness along the up-and-down axis. That means in between every tine.

We will be sanding the comb surface. Tape a piece of 220 grit sandpaper to a flat surface. I use a granite surface plate but any flat surface will do. Don't obsess about the flatness of your working surface. The only thing you need to make your comb perfectly flat is a flat reference.

Place the comb tool over the comb to distribute the weight of your fingers evenly over the surface of the comb.

Move the comb around in circles in both directions until it feels smooth. This usually takes a few seconds. Flip it over and do the other side.

Place the reference along the surface of the comb and hold it up to the light. Hold it only on one side so that you can see how the other side behaves.

Switch sides. this gives us a good clue as to where the comb is bowed and where to flatten.

Put the comb down on the flat sandpaper and apply finger pressure where you want to flatten. Drag the comb along the sandpaper. Check flatness and repeat until it's flat.

Rotate the comb so that you are checking the tips. One tine is leaky here. Flatten the other tines to fix this.

Check in between each tine.

Switch your grip from side to side to reveal where the curve is.

Apply finger pressure and drag the comb to fix.

This is flat.

You can use the tool to apply even pressure to a portion of the comb - just like you used your finger. If the comb was unflat in this area, I would apply pressure like this:

Use this technique on both sides to fix a curve that is concave downward.

In summary, the hard part is measuring flatness. Once you can tell where the comb is not flat, it's easy to fix.

Extra tips!

Here are some extra tips on using my comb tool:

Comb tool extra tips page

Perfect Pitch: Using breath dynamics for tuning

This is part of a series about tuning the diatonic harmonica

Part 1 - Tune a harmonica using your ears and a simple chromatic tuner
Part 2 - More Better - ultra precision tuning
Part 3 - Perfect Pitch: Using breath dynamics for tuning
___________________

The diatonic harmonica can be tuned to different temperaments.

Equal temperament is when each note is tuned to its exact pitch. When the notes of a chord are played together at ET, the chords can sound dissonant because the harmonics aren't in sync. Just intonation means some of the pitches are tuned a little sharp or a little flat so that when played together, the chords sound very smooth. The harmonics are in sync.

Here is a diagram of the waveforms of the tonic and third superimposed:

On the top, you can see that at ET, only one cycle is in sync. On the bottom at JI, every fourth cycle is in sync. That note needs to be 13 cents flat to sync up.

Here is a diagram of the the waveforms of the tonic and the fifth superimposed:

On the top line, at ET, only one cycle is perfectly in sync and we can see it rapidly go out of sync as you move away from the center. On the bottom line, every third cycle is in perfect sync. The interval of the fifth is a powerful sound (guitar players call it a power chord!) because the waveforms are in such harmony. But it only took 1.5 cents to disrupt the timing and make it sound less powerful.

There is no way you can tune a diatonic harmonica to within 1.5 cents accuracy by looking at the needle on a chromatic tuner.

Why?

Harmonica reeds don't always vibrate at the right pitch. If you apply too much air flow, the reed will vibrate too slowly and the pitch will go down. The note will sound flat. That's because you are making the reed move a lot further that it is designed to do (greater amplitude) and it has to travel a greater distance with every vibration.

Likewise, if you play the reed with much lower breath than intended, it will hardly move. Since it will only travel a short distance, it will make the trip is less time and the frequency will go up - the note will sound sharp.

Fortunately, there is a very large "sweet spot" where the reed responds to a range of air flow and can stay reasonably on pitch - within a few cents - even if you don't always use the same breath force to play that note. That's why we can play the diatonic harmonica with such a large range of dynamics.

The fact that the pitch varies by a few cents with breath force is both a curse and a blessing when it comes to tuning.

It's a curse because you can't just tune each hole to a specific note. You need to offset the tuning of each reed so that you meet the following criteria (to name a few):

- the single notes are on pitch
- octaves are on pitch
- the other intervals (fifths, thirds) are on pitch
- the three blow and two draw are enharmonic equivalent (the same note) but they are not the same note (blow three is a fifth, draw two is the tonic; each one has a different offset.)

To meet all these criteria you need high precision. That's where using dynamics actually comes in handy.

Longer reeds flatten more than shorter reeds as you increase air flow. When you play two reeds at the same time you can count on the lower reed to flatten more that the top reed as you increase air flow (because it's longer).

So if two reeds are very close to being in tune, say, they both register the same on the chromatic tuner but you hear beats when you play them together, you can tell which one is tuned higher by playing with increased breath force and listening to what happens.

- If the beating slows down or disappears when you increase air flow, the bottom note is a little sharp.
- If the beating gets worse with increased flow, the top note is a little sharp.

Here's another way of looking at it. This is an animated GIF of two waveforms superimposed. The waveforms are an octave apart. Both waveforms lengthen (drop in pitch) as breath force increases. The lower note in the octave is sharp but with increased breath force it goes into tune with the higher note for a short moment.

In this case, we should either tune the lower note a little sharper or flatten the higher note.

The effect of flow rate on pitch

Here's an example of using breath dynamics to tune with precision:

How to bend notes on the diatonic harmonica: What is “Bending Energy”?

Warning: This blog post contains physics.

Here is an excellent demonstration of what happens when we bend notes. See what happens at the 3:00 minute mark.

When he finds the volume of the tube that is resonant to the frequency of the tuning fork, the sound increases. The frequency of the tuning fork stays constant though. Harmonica reeds are special because they can vibrate at different frequencies. We can make them vibrate faster or slower.

We apply “bending energy” by changing the size of the oral cavity just like professor Sumner Miller changed the size of the resonance chamber (cardboard tubes). Resonance is what applies kinetic energy to the reeds to make them vibrate at the desired frequency. If you want the reeds to vibrate slower, you open up your oral cavity to lower the resonance frequency. The reeds follow. It’s as simple as that.

Hopefully an understanding of what happens as you play a bent note can help you learn how to execute the technique.

Knowing the physics behind it allows you to free yourself from overthinking things. Don’t worry too much about tongue position, “U”-shape, “W”-shape, “G”-spot.... Just make an air pocket in your mouth and when you find the right size, the note will bend. Figure out what works for you to be able to re-create an air pocket of exactly the correct size every time you want to play that note.

It’s a little bit of a moving target when you consider that as you inhale, the tissues of your oral cavity will suck in and the air pocket will shrink. Conversely, the air pocket will grow when you blow bend because of the positive pressure. But with a little practice, your mouth will figure out how to keep the size of the air pocket constant despite these opposing forces.

Your ears play a big role in this. But the interaction between your voice, your ears and the shape of your oral cavity is automatic (or “autonomic”) so no instructions are required - other than to mention to make sure you can hear yourself play!

Overbends are just like regular bends!

Overbends are a little more complicated because we need both reeds (blow and draw) in the system to respond to the same resonance in different ways. One reed needs to stop moving while the other one needs to vibrate at the correct pitch. The trick is to get the reed that is standing still to stay still even though we are applying airflow to the system.

Sometimes out-of-the-box harps are set up to allow this to happen. Sometimes, they are set up to inhibit this. It’s the luck of the draw. It’s a common misconception than you need to practice overbends for years before you can become good enough to play them. The truth is that overbends require breath control, resonance control and a harp that is set up to cooperate.

It’s likely that you can learn to use overbends musically in a matter of weeks with the proper harp and some dedicated practice. You don’t need to build muscle over several years like a bodybuilder. You simply need to learn fine motor control.

I really enjoy watching professor Sumner Miller. Here is another video from the good professor where he describes the phenomenon of beating. Again, watch starting at the 3:00 minute mark:

Hearing the beating is a very important part of how to tune a harmonica.

More Better - ultra precision tuning

This is part of a series about tuning the diatonic harmonica

Part 1 - Tune a harmonica using your ears and a simple chromatic tuner
Part 2 - More Better - ultra precision tuning
Part 3 - Perfect Pitch: Using breath dynamics for tuning
___________________

Can you have too much of a good thing? Probably.

Can a harp be in absolute perfect tune? Maybe. If you don't care all that much about harmonica tuning (as long as your harp doesn't sound too bad), you can stop reading this and go back to playing some mean harp or practicing scales.

You can find a straightforward method of tuning a diatonic harmonica here: Tune a harmonica using your ears and a simple chromatic tuner. That will get your harp sounding very nicely.

If you obsess about tuning and are willing to spend a considerable amount of time and effort to get it perfect, read on!

Here's an important fact: You need to tune every Fifth with as much accuracy as you can.

What's so special about the fifths?

Every note of the scale has a purpose. For example, the Thirds and the Sevenths give the scale it's general sense of being (major, minor, dominant...). Fifths imply the Tonic; they are closely related to the tonic. It's important to get the tuning of the fifth (and fourth - same thing) right to make the chord sound nice.

Since the tonic and fifth are so closely related, the margin of error is considerably tight. A very small adjustment can go a long way. Often a fifths is tuned to less than 2 cents from ET, so even if you like your harps tuned to ET, you should be able to get away with such a small offset - you get the best of both worlds.

No chromatic tuner will be of help - you need to use your ears for adjustments this precise.

There are a lot of fifths on the standard diatonic harp. Every arrow in this picture is an interval of a fifth. If you enjoy tuning, dig in!

I can't tongue-block these intervals without affecting my embouchure which will cause some bending of these notes. That's not helpful to precise tuning! To play these intervals with a natural embouchure, you can isolate these pairs of reeds with the cover plates off using one finger to mute the thirds.

There are two chords on the draw plate so there are two different Fifths! The 2 draw is the tonic of the 1-2-3-4-5 draw chord. But the 4 draw is the tonic to the 4-5-6 minor chord. So 2-4 draw is an interval of a fifth, but so is 4-6 draw. These notes are repeated up the harp so 6-8 is a fifth, too.

Waitaminute! 6-8 is a fourth! Yes, but 8-6 is a fifth!. Take a minute to think about that...

...

And 8-10 is a fifth.

So tune the fifths with your tuner and then fine tune them with your ears. Play the tonic and the fifth and eliminate beating in the same way you eliminate beating when you tune octaves (using variable breath force to figure out which way to adjust the notes. See here: Tune a harmonica using your ears and a simple chromatic tuner. These beats are a little harder to hear than straight octaves, but they are there.

Thirds anyone?

Now that you have tuned all the fifths to perfection, can you use the same process with the thirds? Sure. Play the tonic and third together and fine-tune it to eliminate beats.

On the draw plate, there are two chords so there are two thirds. The 3 and 7 draw are major thirds to the 2 draw. The 5 and 9 draw are minor thirds to the 4 and 8 draw. Since major thirds need to be tuned about 12 cents flat to be just, you can compromise and find a nice sounding spot in between equal (0) and just (-12). Minor thirds are just at +16 but they sound pretty good near zero.

Remember the 5 draw is also the flat seventh of the 2 draw as well as the minor third of the 4 draw. What sounds good for one may not sound so good for the other. You decide what's best...

This is an extended French TunerTuner™. They are not part of my tool kit but are available separately.

What does it do? It helps tune the Fifths, Thirds as well as the Octaves on the blow plate.
The extended French Tuner works just like the regular FT. It plays octaves on one side and plays the other intervals on the other side.

Octaves:

Fifths:

You don't need any fancy equipment to tune properly. Even the French tuner/extended FT is just a tool to speed up the process. Use your ears. I'm posting these images to offer you a further visual example of what reeds to tune as pairs.

Some points to remember about tuning intervals relative to the tonic:

- If you play both the Tonic and the Fifth, a chromatic tuner will indicate the tonic - even if the tonic is the higher note (example, 3-4 blow or 6-8 draw.)
- Use your ears just like when tuning perfect octaves.
- If you hear beating that disappears when you increase your breath force, the bottom reed is tuned higher than the top reed (again, even if the bottom reed is the fifth)

Happy tuning!

Harmonica Repair Basics

Rockin Ron told me that he gets quite a few technical support questions about replacement reed plates. The harmonica looks like a simple instrument but once you have taken it apart for the first time, you realize how important all the little details can be!

Here's a video about the basics of installing new reed plates into your favorite harp:

The F tool™

The F Tool™ is now available in the Tools section

A well-playing harp has a solid connection to the vocal tract. A big part of what makes it is easy to play, sound nice and fat is that it's airtight.

If it leaks air, the connection between your vocal tract and the instrument is weakened and the harp feels stiff. The tone is also weaker.

The good news is air leaks are fixable! In fact, that's the fundamental step in improving a harmonica. If you skip this step, you will usually end up working against yourself further down the line.

The detailed instuctions on How to use the F Tool are here.

Wonderful Cacaphony

Can you tune a bunch of diatonic harmonicas with precision in the same room at the same time?

Of course you can!

http://harp.andrewzajac.ca/Tools

This is a moment captured during a harmonica repair workshop in Kingston, Ontario on 2015/05/16. The was the first time each of the participants used the French Tuner and I was impressed at how well they could tune a harp! Great job, guys!

Better...stronger...faster.

I just bought a second CNC mill. It's bigger and faster than my first one. A second machine will improve my productivity and save time. It will also allow for redundancy. Routine maintenance won't affect my production time.

I bought it in the USA and crossed the border to pick it up the other day. I had to describe what I was bringing back to Canada to three different Border Services people and it's not an easy tool to describe.

Not being able to quite explain it in ten words or less, I said: "It's kind of like a 3-D printer".

Each one had the exact same reaction: "Really? Ahh! That's so cool!" they said and nodded...

I use my CNC mills to make combs, tools and a few other interesting tidbits I would never have conceived just a few years ago. Computer aided design (CAD) and computer aided manufacturing (CAM) is so accessible these days. Oscar Goldman was right! "We have the technology."
